Compressors
Screw Compressors Semi-Hermetic Compact
Standard Refrigerants – CSH.6 Series | CS Series | CSW105 Series
Hydrocarbons – CSHP
Description

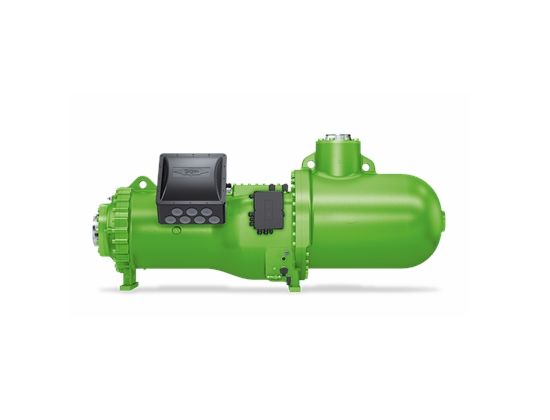

Screw Compressors Semi-Hermetic Compact
The compact CS series features mechanical capacity control, which enables very good efficiency and simple system integration. The finely graded models of the CS series are optimised for a large application range in liquid chillers and heat pumps. From CS.105 with IQ module.
The CSH.6 compact screw compressor series is especially designed for use in chillers with improved seasonal efficiency. It enables OEM system manufactures to produce A/C & process chillers that fulfill highest international chiller efficiency standards by means of mechanical capacity regulation or operation with external frequency inverter.
The integrated oil separator and build-in suction gas cooled motor simplify the system integration and enable a compact and cost-effective system design.
Refrigerants R134a, non flammable, A1 | R513A, R450A, non flammable, A1 | R1234ze(E), R1234yf, flammable, A2L
Product range 12 models from 258 to 1120 m³/h @ 50 Hz
Certifications CE | EAC | UL | DNV GL
The CS compact screw compressor series can be used in an impressively wide range of applications from air conditioning to process cooling and even industrial heat pumps.
Versatile product executions enable system builders to perfectly match their requirements. The integrated oil separator and built-in suction gas cooled motor simplify the system integration and enable a compact and cost-effective system design.
The CS series is equipped with a mechanical slider for capacity regulation and can alternatively be operated with an external frequency inverter.
Refrigerants HFC, HFC blends and HCFC, non-flammable A1 | HFO blends, non-flammable A1 | HFO blends, flammable A2L | HFO, flammable A2L | For use with HCs (R290/R1270)
Product range 21 models from 137 to 1120 m³/h at 50 Hz
Certifications CE | EAC | UL | DNV GL
The CSW105 is the new BITZER compact screw compressor series for large capacity application in water cooled chillers and air cooled chillers with low condensing temperatures.
The series combines increased cooling capacity with best-in-class energy efficiency in full and part load operation and proven BITZER quality.
Applicable refrigerants R134a, non-flammable A1 | R513A, R450A, non-flammable A1 | R1234ze(E), R1234yf, flammable A2L
Product range CSW10593-400Y – 2000 m³/h bei 50 Hz | CSW10583-360Y – 1700 m³/h bei 50 Hz – Standard version with BSE170L | CSW10583-290Y – 1700 m³/h bei 50 Hz | CSW10593-360Y – 2000 m³/h bei 50 Hz – Version with low-viscosity oil BSE55 and adapted engine for further improved performance
Certifications CE | EAC | DNVGL

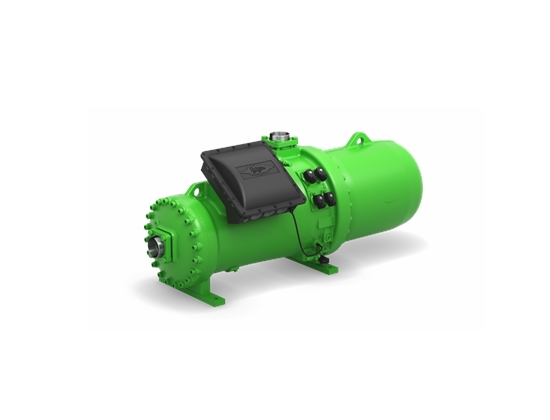

The CSHP compact screw compressor series is especially designed for use with the natural low-GWP hydrocarbon refrigerants propane (R290) and propylene (R1270). The CSHP series is differently designed than the standard CSH regarding the electronic equipment, safety features, oil charge and the internal lubrication system.
As hydrocarbon refrigerants are flammable and are classified as safety class A3, the CSHP series is only available for OEM system suppliers who are experienced in the handling of flammable refrigerants.
Generic applications A/C chillers w/ and w/out heat recovery | Reversible A/C chillers for cooling and heating | Process chillers for HT / MT / LT application w/ and w/out heat recovery | Heat pumps, space heating, process heat pumps
Refrigerants Natural low-GWP hydrocarbon refrigerants | R290, R1270, flammable A3
Product range 18 models from 137 to 1015 m³/h at 50 Hz
Certifications CE | EAC
CSH.6 Series
Applications A/C chillers w/ and w/o heat recovery | Reversible A/C chillers for cooling and heating | Process chillers for HT / MT / LT application w/ and w/o heat recovery Industry sectors - Building equipment industry | Automotive & Mechanical engineering industry | Food & Beverages industry | Injection moulding industry
CS Series
Applications A/C chillers w/ and w/out heat recovery | Reversible A/C chillers for cooling and heating | Process chillers for HT / MT / LT application w/ and w/out heat recovery | Heat pumps, Space heating, Process heating Industry sectors - Building equipment industry | Automotive and mechanical engineering industry | Food and beverages industry | Injection moulding industry | Chemical and pharmaceutical industry | Marine and offshore industry | And many more
CSW105 Series
Applications Water cooled A/C chillers w/ and w/out heat recovery | Water cooled process chillers for HT / MT / LT application w/ and w/out heat recovery | Air cooled process chillers with lower condensing temperatures for HT / MT / LT application w/ and w/out heat recovery Industry sectors - Building equipment industry | Automotive and mechanical engineering industry | Food and beverages industry | Chemical and pharmaceutical industry | Marine and offshore industry | And many more
CSHP
Generic applications A/C chillers w/ and w/out heat recovery | Reversible A/C chillers for cooling and heating | Process chillers for HT / MT / LT application w/ and w/out heat recovery | Heat pumps, space heating, process heat pumps Industry sectors - Building equipment industry | Automotive and mechanical engineering industry | Food and beverages industry | Injection moulding industry | Chemical and pharmaceutical industry | Marine and offshore industry
