Reciprocating Compressors OPEN
Open drive reciprocating compressors are available in two model series: for (H)CFC/HFC refrigerants and ammonia.
Due to the open drive design, standard motors can be attached to the compressor via coupling housing or belt drive.
Reliability and easy maintenance have made them popular options for years.

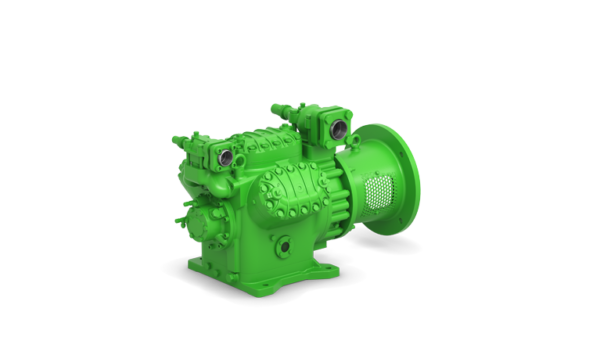

2nd Generation Compressor
With the 2nd generation, BITZER has taken a decisive step forward: There is now a model range for chlorine-free HFC refrigerants and HFCKW. Thanks to their highly efficient and robust designs, the standard compressors meet all the criteria for operation with chlorinated and chlorine-free refrigerants.

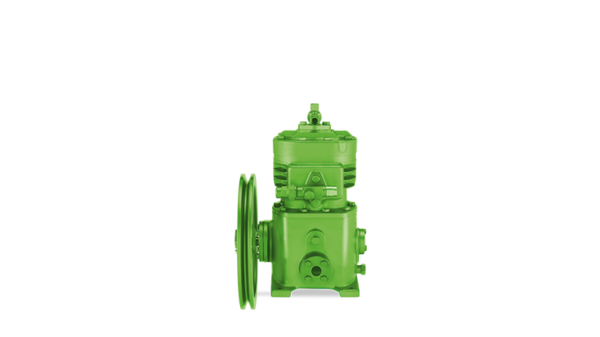

O-VII Series
Refrigerants - HCFC (R22) | HFC (R134a, R404A, R507A) | Capacity range - 8 housing sizes | 8 models | 0.96 m³/h .. 9.42 m³/h (1450 rpm) | Certifications - CE | EAC

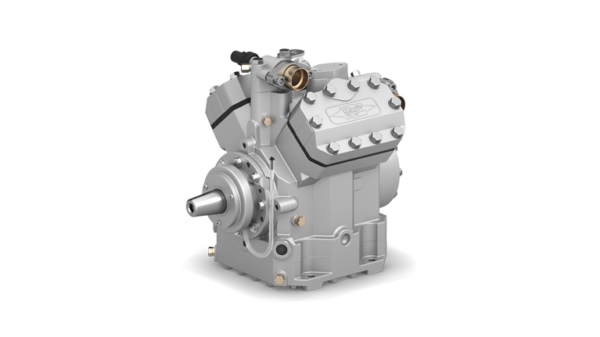

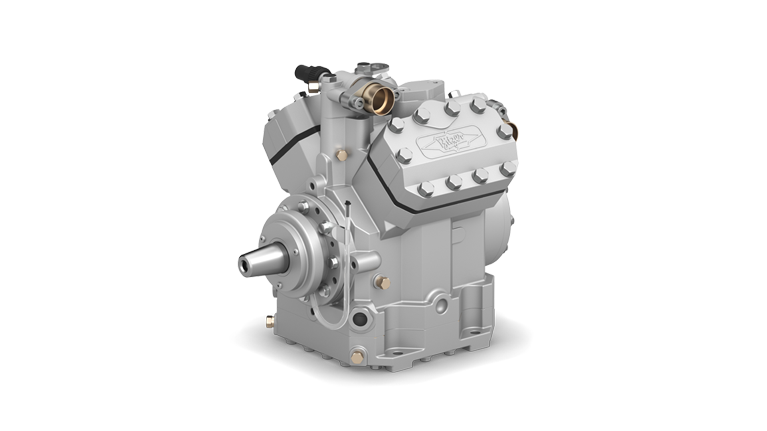

ROADSTAR
The BITZER ROADSTAR models have been specialized for challenging requirements in vehicle applications. This Series has overcome the challenges of all climatic zones and has been proven as the robust star for mobile usage. Refrigerants - HCFC (R22,R12) | HFC (R134a,R404A, R507A) | Capacity range - 3 housing sizes |13 models (2 to 6 cylinder) - 238 cm³ … 970 cm³ | - 20,7 m³/h … 84,4 m³/h (1450rpm) | - 42,8 m³/h … 174,6 m³/h (3000rpm) | Certifications CE | EAC | RS | Applications - Air conditioning | Transport Refrigeration

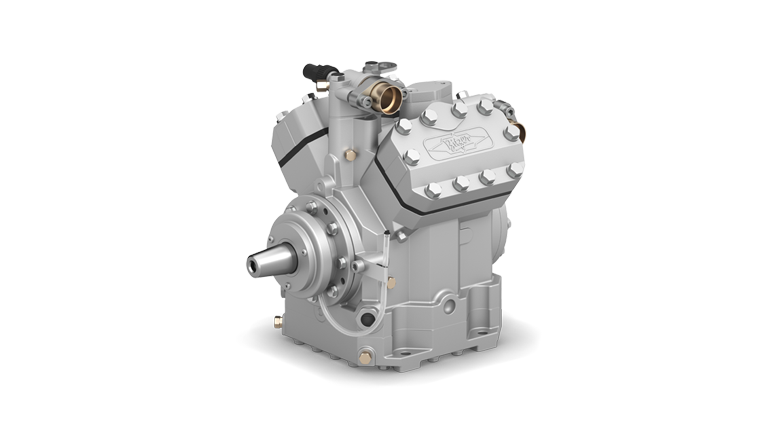

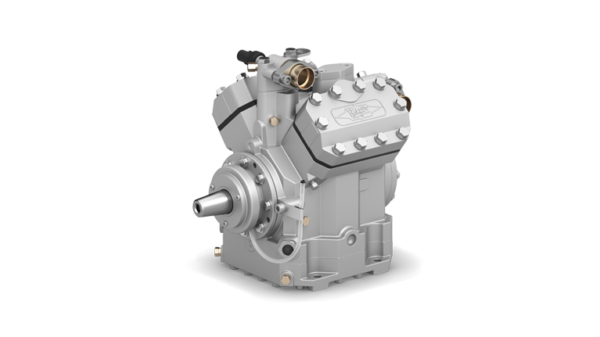

FR Series
A special version was developed for transport refrigeration systems on the basis of the proven 4UFC(Y) .. 4NFC(Y) compressors designed for vehicle air conditioning. This new series – 4UFR(Y) .. 4NFR(Y) – can be used with R404A, R507A and R22 (“R” = refrigeration) in a wide range of applications – medium to low temperature applications.

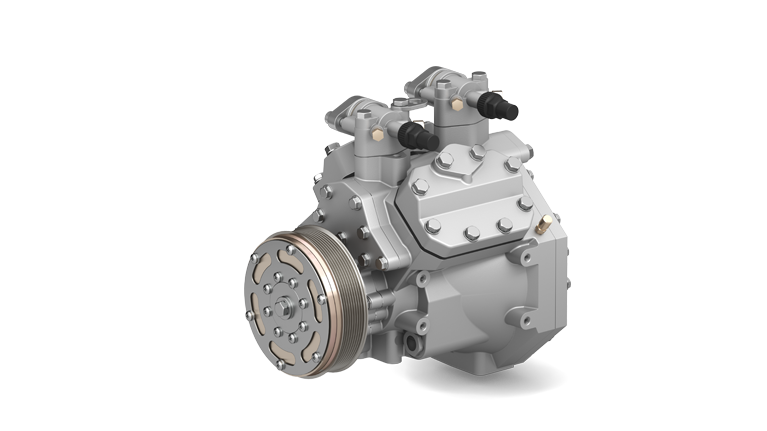

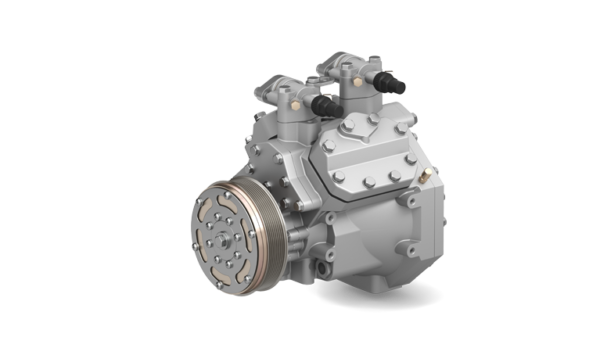

F400
Based on experience with the years of success of the 4UFC .. 4NFC compressor series, a compact and lightweight alternative was developed for bus air conditioning systems with low and medium outputs.

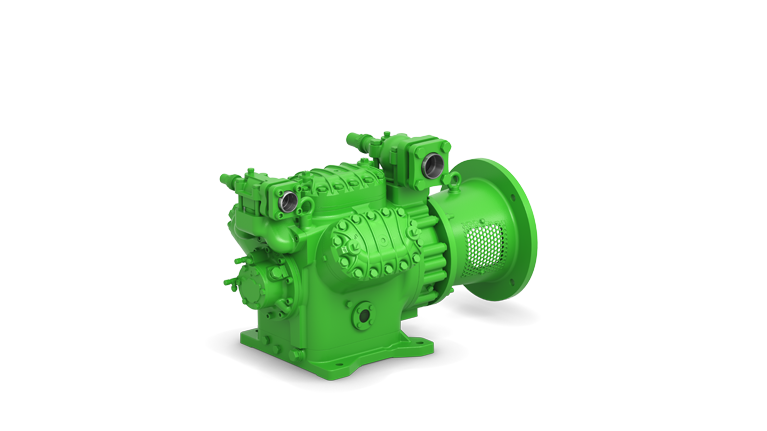

NH₃ - W...A Series
In addition to compressors for HFC and HCFC, we offer a series of open-drive compressors specially optimized for use with ammonia (NH₃) refrigerant.
