Bluetooth Motor Protection Relay
MP8000 Series
- Easy-to-use
- Bluetooth interface for programming and viewing in real-time
- Designed for single or 3-phase systems
Description

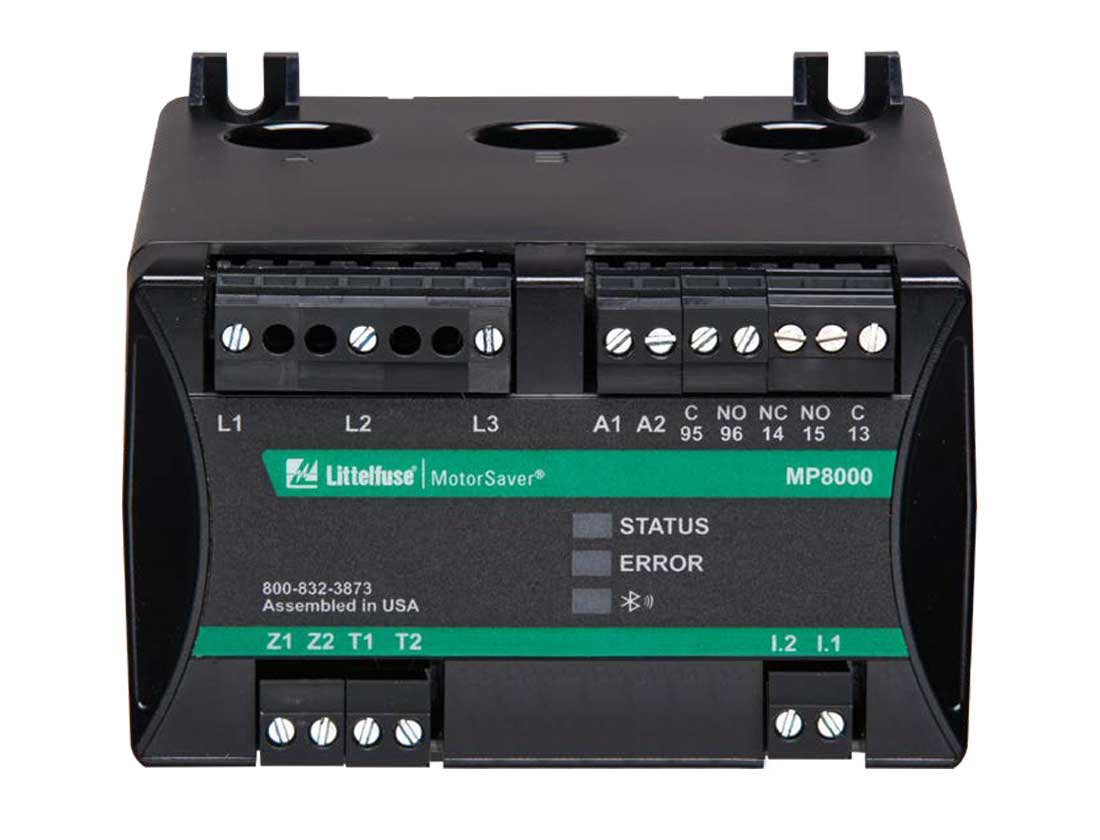

The Littelfuse MP8000 is an advanced motor protection electronic overload relay that is fully programmable via Bluetooth with the Littelfuse App on an iPhone or Android smartphone or tablet.
The MP800 is designed for single or 3-phase systems with operating voltages of 90-690 VAC (use of external potential transformers can extend upper voltage range above 690 VAC). Common applications include conveyor systems, HVAC equipment, saws and grinders, fan motors, and almost any pumping application.
Arc-flash safety is increased with the easy-to-use app which allows settings to be modified and real-time operational information viewed. Viewing operational information and faults on the app does not require the user to open the control panel. The MP8000 protects any motor drawing 0.5-1,000 full load Amps (external CTs are required above 100 Amperes).
Protection is unsurpassed by combining overload, voltage, phase loss and reversal, voltage and current imbalance, power monitoring, and underload in one package.
For standalone applications, the Bluetooth interface can be used when paired with a smartphone or tablet. The units also feature an Ethernet communications port that can be used to form an Ethernet Modbus TCP/IP or Ethernet/IP network. Units can be remotely monitored and controlled from a PC, or SCADA system, and data logging through a PC with the optional MP8000 software or other software program using the MP8000 memory map. This capability allows for a simple cost-effective way to further enhance arc-flash safety.
We are the exclusive NSW supplier of Littelfuse protection relays and controls for the protection, safe control and distribution of electrical power in industrial applications.
Bluetooth interface
Visual indication for programming, viewing real-time voltage or current, and last fault information (date and time stamped).
Programmable voltage and current settings
Allows usage on a wide range of systems.
3 selectable restart options
Choose from automatic, semi-automatic, or manual to best meet individual application needs.
4 programmable delay timers
Program separate delay times for power up, rapid cycle protection, motor cool down, and underload restarting.
Flexible reset
Reset can be done through push-button on panel, remotely via the network.
Network communications capability
Compatible with Ethernet Modbus TCP/IP and Ethernet/IP.
Data Sheets and Manuals
MP8000 Bluetooth Enabled Relay Data SheetMP8000 ManualMP8000 Electronic Data Sheet EDSMP8000 Guide Form SpecificationsMP8000 Programming GuideMP8000 Point-to-Point ConfigurationMP8000 Software ManualMP8000 Quick-Start GuideMP8000 FAQMP8000 Bluetooth Security Features
CAD Drawings and Models
MP8000 Parasolid 3D Model
