Testo Measuring and Testing Devices

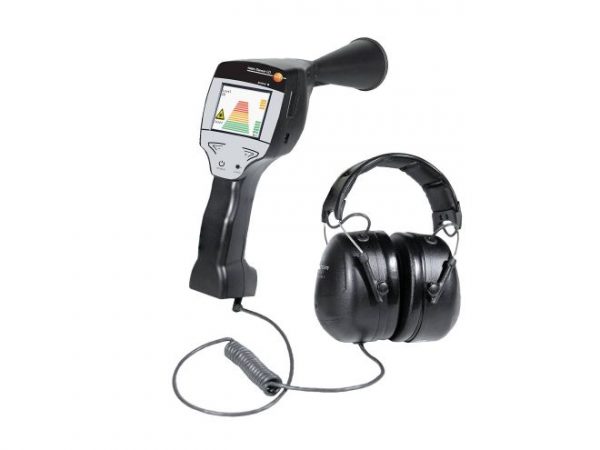

Ultrasonic Sensor LD Leak Detector
Its durability and light weight make it convenient to handle and make it easier to work in industrial environments on a day-to-day basis
Sound funnel for better detection of leaks
Modern, high-capacity Li-ion rechargeable battery, min. operating time 10 hours
Easy operation via membrane keypad
Description
Gases escaping from leaks in pipe systems (e.g. corrosion, untight screw connections etc.) cause noises in the ultrasonic range. With the Testo Sensor LD, even the smallest leaks, which are not audible for the human ear, and due to their size are not visible, can already be localized from several metres away. The Testo Sensor LD converts the inaudible ultrasound into audible frequencies. These sounds can be perceived even in loud surroundings with the comfortably worn, sound-proof headphones.
The Testo Sensor LD leak detector stands out thanks to its highly accurate sensor technology and improved support in the detection of leaks (e.g. in compressed air, gas, steam and vacuum systems, refrigeration systems, door seals). With the help of an integrated laser pointer which acts as a
sighter, the leak can be more accurately localized.
- Robustness and a low weight ensure non-tiring use in industrial surroundings
- Improved detection of leaks thanks to sound funnel
- Modern. high-capacity Lithium ion rechargeable battery
- Operating time min. 10h
- Easy operation via membrane keypad
Advantage A
High-precision sensor technology
Advantage B
Reliable tracing of even the smallest leaks from a distance of several metres using the sound funnel
Advantage C
Conversion of noises generated in the inaudible ultrasonic range into audible frequencies
Advantage D
Sound-proof, comfortable-to-wear headphones for acoustic leak detection in noisy environments
Advantage E
Integrated laser pointer acts as a sighter for precise location of leaks
Advantage F
Ideal for use in industrial environments thanks to its robust housing and light weight
Advantage G
Built-in, high-capacity Li-ion rechargeable battery, for a minimum operating time of 10 hours
Advantage H
Simple, reliable operation thanks to the robust membrane keypad with intuitive interface
Operating temperature
0 to +40 °C
Storage temperature
-10 to +50 °C
