Emergency Lighting Exit Signs

Exit Sign - Razor Core

Added to List

Slim Architectural Design

DALI Certified

Accessories Available

Decals

Description

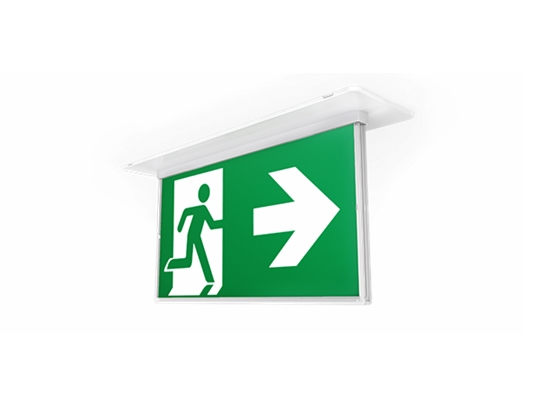

Slim Design Razor Core Exit Signs

RAZOR CORE 24M – Slimblade Core recessed Exit light 24M | RAZOR CORE24M B – Slimblade Core recessed Exit light 24M Black

High quality design ensures great luminance and avoids glare, reduces the unwanted effects such as unevenness and the amount of external light that is reflected.

The qualification to the ISO9001 quality system should not be understated. All New Generation emergency exit signs and related products are manufactured and audited to ISO9001 by TUV Reinhardt, a leader in quality system approvals. This quality system allows us to deliver consistently and improve reliability which can not easily be achieved in products manufactured without a quality system.

High quality polycarbonate plastic is used in all our products removing ABS plastic from the mix. Polycarbonate provides a higher strength product and doesn’t produce the thick smoke that is normally produced by ABS and ABS + PC mixes when burnt. PC also provides better resistance to many chemicals found in specialised production facilities and farming sheds.



GENERAL FEATURES

Single and double sided decals | Available in low illumination area black model | Replaceable easy fit, quick-release decals | RAZOR CORE 24M Slimblade Core recessed Exit light 24M | RAZOR CORE24M B | Slimblade Core recessed Exit light 24M Black

BUILT TO LAST

LED light source | Long life electronics | 5 Years Design Life – 100,000 hours at max. ambient | High Quality Lithium battery (LiFePO4) and smart charger

SUITABLE INSTALLATION TYPES (OUT OF THE BOX)

Standalone (SPU)

SUPPLY VOLTAGE 230V~ 50Hz

AMBIENT TEMPERATURE

0 – 55°C

CLASS

2

WIRING

Flex and Plug 1.2m

IP RATING

IP20

MOUNTING TYPE

Recessed

EMERGENCY LAMP POWER

1 W

EMERGENCY RATED DURATION

90/ 120 min

CLASSIFICATION

C0:E6.3, C90:E20

VIEWING DISTANCE

24 M

DECAL SIZE

300 x 150 mm

CUT-OUT

63 x 335 mm

BODY

PC (UV Stabilised)

DIFFUSER

PMMA

GEAR TRAY

PC

COMPLIANCE STANDARDS

AS/NZS 60598.2.22 AS/NZS 2293.3 IEC 60598-2-22 IEC 55015 CISPR 15

BATTERY TYPE

LiFePO4

BATTERY VOLTAGE

3.2V

BATTERY CODE

13972

CHARGER TYPE

Smart charge

CHARGER TIME

16 hours

CHARGER OPERATION

Variable
