Emergency Lighting Exit Signs
Exit Sign - Ceiling Basic
Standard Emergency Sign
DALI Certified
Accessories Available

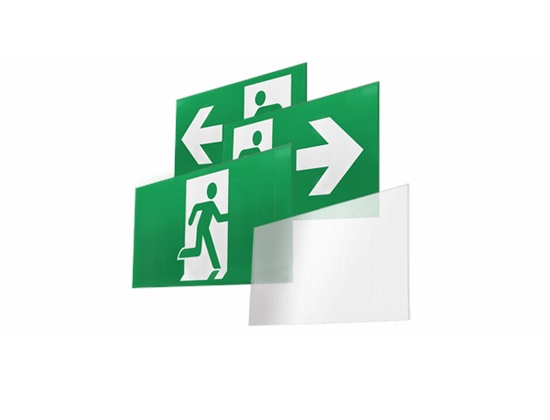

Decals
Description
Ceiling | Basic – Emergency Exit Sign
Reliability and Quality on a budget
This high quality design ensures great luminance and avoids glare, reduces the unwanted effects such as unevenness and the amount of external ight that is reflected.
GENERAL FEATURES
Single and double sided decals | Fully compliant (AS/NZS 2293) | Replaceable easy fit, quick-release decals | Ceiling and rod mounting (with Rod Mount Kit)
BUILT TO LAST
LED light source | Long life electronics | Low power consumption | 5 Years Design Life – 44,000 hours at max. ambient | High Quality Lithium battery (LiFePO4) and smart charger
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
Standalone (SPU)
SUPPLY VOLTAGE
240V~ 50Hz
AMBIENT TEMPERATURE
0 – 40°C
CLASS
2
WIRING
Terminal block (1-16 mm □)
IP RATING
IP20
MOUNTING TYPE
Surface/suspended (Rod Mount Kit available but not included)
VIEWING DISTANCE
24M

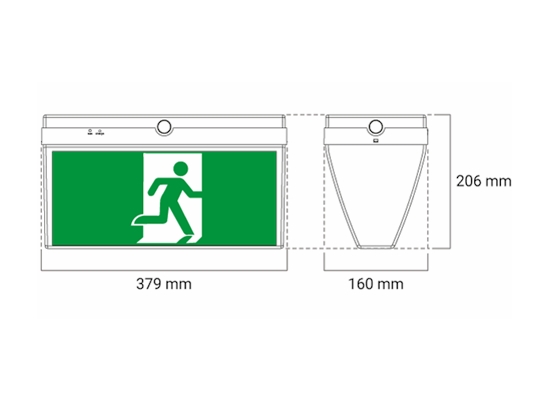

DECAL SIZE
340 x 150 mm
EMERGENCY LAMP POWER
0.95 W
EMERGENCY RATED DURATION
90 / 120 min
EMERGENCY CLASSIFICATION
C0:E2.5, C90:E2.5, C180:E2 (2hr)
CHARGER TYPE
Smart charge
CHARGER TIME
16 hours
CHARGER OPERATION
Variable
STANDARDS
AS/NZS 60598.2.22 AS/NZS 2293.3 IEC 60598-2-22 CISPR 15
