Description

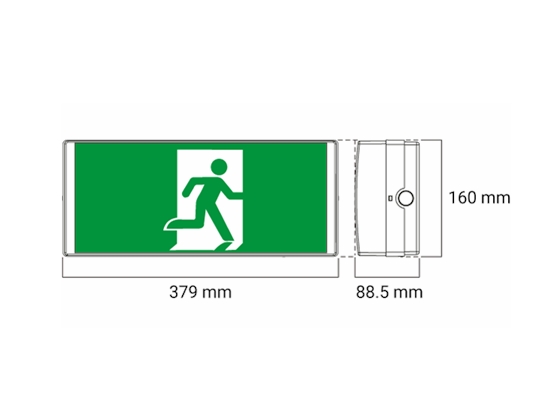

Wall | Basic – Emergency Exit Sign
Reliability and Quality on a budget
This high quality design ensures great luminance and avoids glare, reduces the unwanted effects such as unevenness and the amount of external ight that is reflected.
GENERAL FEATURES
Single sided decal | Fully compliant (AS/NZS 2293) | Replaceable easy fit, quick-release decals | Wall and rod mounting (with Rod Mount Kit)
BUILT TO LAST LED
LED Light source | Long life electronics | Low power consumption | 5 Years Design Life – 44,000 hours at max. ambient | High Quality Lithium battery (LiFePO4) and smart charger
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
Standalone (SPU)
ACCESSORY RANGE - BOXIT
Decal pack for Wall and Ceiling (1 x left, 1 x right, 1 x straight) | LED Gear tray (decal pack included) | Wall diffuser (decal pack included) | 3.2V-LIFEPO4 1500mAh 3.2V 2 Cell LiFePO4 Battery | Rod mount, incl. bracket for roof /body
SUPPLY VOLTAGE
240V~ 50Hz
AMBIENT TEMPERATURE
0 – 40°C
CLASS
2
WIRING
Terminal block (1-16 mm □)
IP RATING
IP20
MOUNTING TYPE
Surface/suspended (Rod Mount Kit available but not included)
VIEWING DISTANCE
24M
DECAL SIZE
340 x 150 mm
EMERGENCY LAMP POWER
0.95 W
EMERGENCY RATED DURATION
90 / 120 min
EMERGENCY CLASSIFICATION
C0:E2.5, C90:E2.5, C180:E2 (2hr)
COMPLIANCE STANDARDS
AS/NZS 60598.2.22 AS/NZS 2293.3 IEC 60598-2-22 CISPR 15
BATTERY TYPE
LiFePO4
BATTERY VOLTAGE
3.2V
BATTERY CODE
01307
CHARGER TYPE
Smart charge
CHARGER TIME
16 hours
CHARGER OPERATION
Variable
