Ceiling | Surface Mounted
Disc LED Oyster
Low Profile Design
Tricolour | 3 models
Apartments | Residential | Commercial Spaces
| 29605 |
Description
Disc LED Oyster
Dimmable IP54 LED Oyster SL2105TC, 12, 25, 30 watt, with selectable colour temperature
A perfect choice for apartments, residential or commercial spaces
Robust white polycarbonate body profile, three sizes to select
Quality opal polycarbonate diffuser
High efficiency SMD LED chips, CRI > 80, selectable CCT 3000K, 4000K or 5700K
Integral constant current trailing edge dimmable LED driver
Low profile design, IP54, designed for weather protected (under eaves) installations, double insulated
12W
CCT 3000K-1100lm | 4000K-1200lm | 5700K-1200lm | CRI 80 | Beam Angle 120° | Trim Colour WHITE | Diameter 200mm | Height 48mm (H)
25W
CCT 3000K-2450lm | 4000K-2600lm | 5700K-2500lm | CRI 80 | Beam Angle 120° | Trim Colour WHITE | Diameter 300mm | Height 40(H)
30W
CCT 3000K-2800lm | 4000K-3480lm | 5700K-3000lm | CRI 80 | Beam Angle 120° | Trim Colour WHITE | Diameter 400mm | Height 52mm (H)

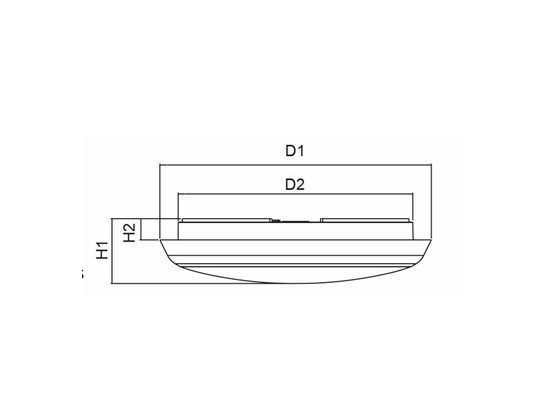

12W Dimensions (mm)
(20TC) = (D1) 200 x (H1) 48 (D2) 173 x (H2) 16
25W Dimensions (mm)
(30TC) = (D1) 300 x (H1) 40 (D2) 271 x (H2) 13
30W Dimensions (mm)
(40TC) = (D1) 400 x (H1) 52 (D2) 363 x (H2) 15
Dimmable
YES Dimmer Type - Compatible trailing edge dimmers
