Ceiling Fan DC
Polar DC 3 Blade
Maximum Airflow 48” – 13,860 on High Speed
56” – 14,928 on High Speed (Speed 6)
Sizes available – 1220mm (48”) | 1560mm (56”)
Light and No Light Models
Indoor and outdoor (provided the fan is fully undercover)
Description

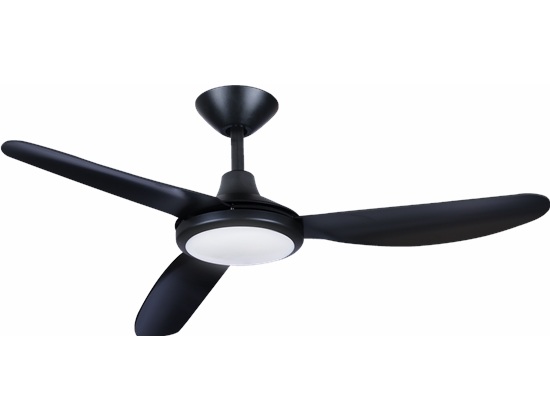

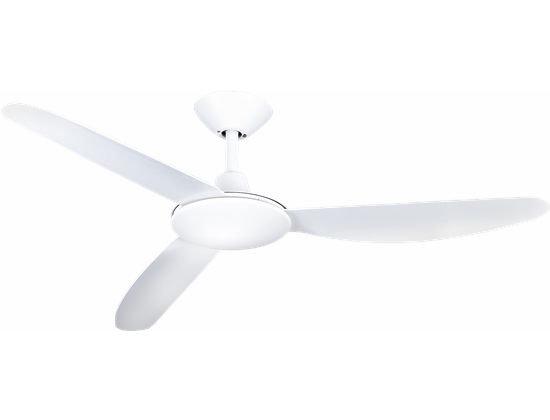

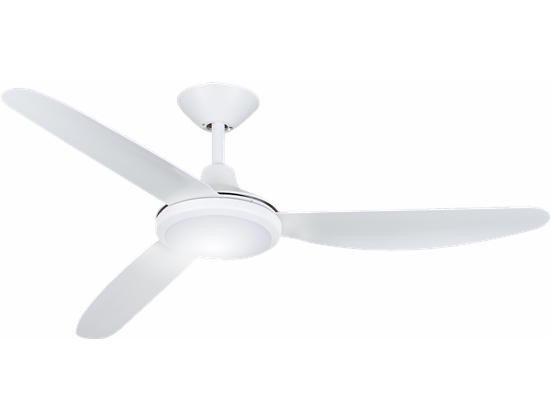

The Polar ceiling fan encapsulates all the latest DC technology with a slim, modern design. The aerodynamic blades create colossal airflow, with minimum energy usage.
Ceiling fans circulate air within a room and provide a cooling effect through the action of air moving over the skin.
In addition to making the room feel up to 6° cooler, they can significantly assist in savings up to 30% off your energy bills.
In winter ceiling fans redistribute warm air that gathers at the ceiling.
Running your fans in reverse, draws the air that naturally rises and gently re-circulating it throughout the room. Therefore balance the room’s temperature.
All ceiling fans should be at least 2.1 meters from floor to tip of the blades and at least 300mm from ceiling.
AC vs DC FANS
Alternating Current Motors (AC) use supplied power directly and regulate speeds by controlling frequency. AC Motors generally only have 3 speeds.
Direct Current motors (DC) convert supplied power directly. and regulate speeds by controlling electrical current. These Motors use up to 70% less energy than standard AC fans. Furthermore DC Ceiling Fans are more efficient, offering virtually silent operation.
Direct Current models usually have 5 or 6 speeds and are remote controlled.
Ceiling Fans purchased through Davis + Spence are covered by a Manufacturer’s Warranty
Always use a licenced professional for installation.
| 20333 |
•
3 Aerodynamic Wedge Compression Blades
•
6 Speed DC Remote Control
•
DC Energy Efficient Motor
•
DC Wall Control Available
•
18W Dimmable CCT LED 3000K, 4000K & 6000K
Instruction Manual
Motor
157mm x 10mm DC motor Made with high grade copper windings and silicone steel stator. Bearings are sealed to ensure quiet operation and long life.
Motor Housing
Materials: Polymer
Available Motor Housing Colours
Matt White and Matt Black
Blades
Sizes: 1220mm (48”) / 1560mm (56”) Materials: Polymer Blades Blade Pitch: 13°
Available Blade Colours
Matt White & Matt Black
Extra Information
6 speed remote controller | Reversible
Standard Canopy Cover
Suitable for flat ceilings
Rotational Diameter
1220mm (48”) / 1560mm (56”) blade sweep
Accessories (Supplied separately)
Extension Down Rod 26mm diameter (includes wire harness) 38° Ceiling Kit (for pitched ceilings) T-Hook for ceiling roses 240V DC Wall Controller
Warranty
2 years in-home warranty on all electric components (control modules, remote control system, lighting and accessory wall control) 3 years standard “in home” warranty 3 years extended warranty on motor only (excluding labour)
Airflow
48” - 13,860 on High Speed | 56” - 14,928 on High Speed
