Ceiling Fan AC
Concept Ceiling Fan
Maximum Airflow 14,144m³/hr
| 20333 |
Description
Building on the timeless appeal of the Concept fan family, Concept 3 is an avant-garde update.
Featuring a new ceiling canopy design and aerodynamic polymer blades.
Beneath the surface Concept 3 incorporates a patented Slimline motor, giving a robust, reliable
and energy efficient package suitable for every Australian climate.
Concept 3 LED includes all the benefits of the Concept 3 avant-garde update and includes an all new perimeter fed 24W LED light.
Drawing upon the technology behind the Revolution 3 LED light this new Concept family member
once again sets new benchmarks for performance and elegance.
Ceiling fans circulate air within a room and provide a cooling effect through the action of air moving over the skin.
In addition to making the room feel up to 6° cooler, they can significantly assist in savings up to 30% off your energy bills.
In winter ceiling fans redistribute warm air that gathers at the ceiling.
Running your fans in reverse, draws the air that naturally rises and gently re-circulating it throughout the room. Therefore balance the room’s temperature.
All ceiling fans should be at least 2.1 meters from floor to tip of the blades and at least 300mm from ceiling.
AC vs DC FANS
Alternating Current Motors (AC) use supplied power directly and regulate speeds by controlling frequency. AC Motors generally only have 3 speeds.
Direct Current motors (DC) convert supplied power directly. and regulate speeds by controlling electrical current. These Motors use up to 70% less energy than standard AC fans. Furthermore DC Ceiling Fans are more efficient, offering virtually silent operation.
Direct Current models usually have 5 or 6 speeds and are remote controlled.
Ceiling Fans purchased through Davis + Spence are covered by a Manufacturer’s Warranty
Always use a licenced professional for installation.
| 20333 |
•
Safe, quiet 52"/60" polymer blades
•
3 Speed wall control
•
Suitable for use with Building Automation Systems (when using additional (accessory) interface)
•
Light Adaptable
•
Die cast Aluminium Body
Instruction Manual
Motor
16 Pole, 153mm x 18mm motor Made with high grade copper windings and silicone steel stator. Bearings are sealed to ensure quiet operation and long life.
Motor Housing
Materials: Die Cast Aluminium

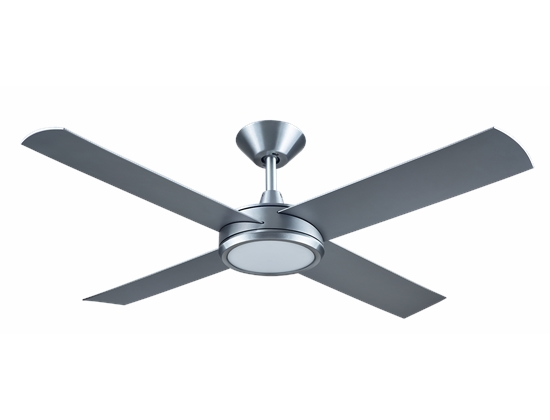

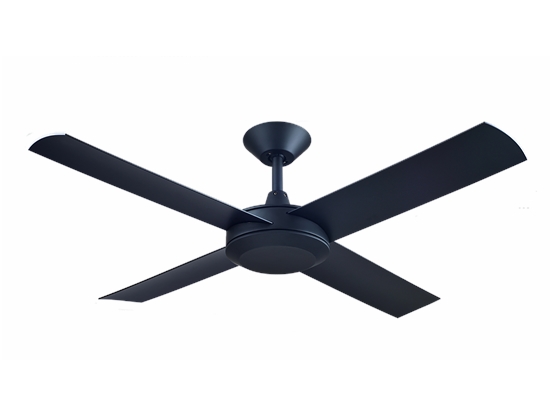

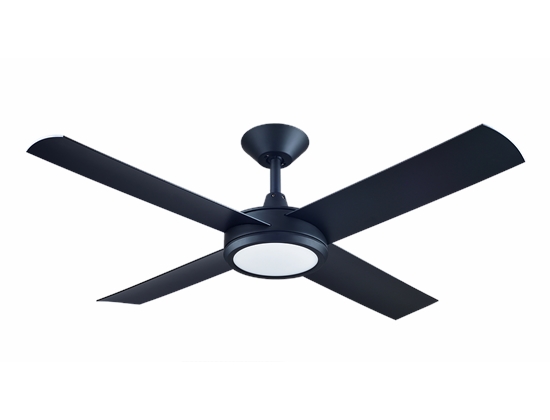

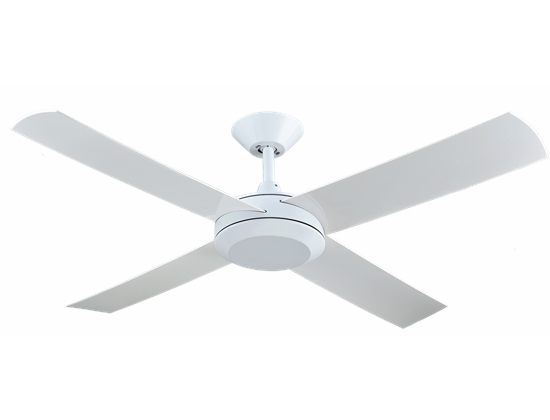

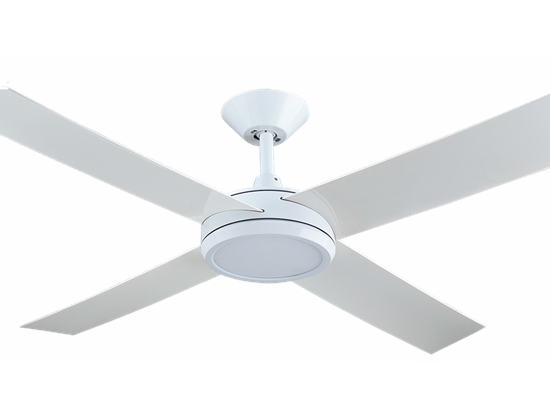

Available Motor Housing Colours
White, Brushed Aluminium and Matt Black
Blades: Dynamic Aerofoil Sizes
1320mm (52”) Materials: Injection moulded high temperature plastic Blade Pitch: 10°
Available Blade Colours
White, Silver and Matt Black
Extra Information
3 Speed wall controller | Reversible | Light Adaptable
Standard Canopy Cover
Suitable for flat and pitched ceilings up to 28°
Wall Controller Speed Capacitor Values
3.5µF & 2µF
Rotational Diameter
1320mm (52”) blade sweep
Light
24W LED Dimmable
Accessories (Supplied separately)
Remote Control Extension Down Rod 26mm diameter (includes wire harness) | 38° Ceiling Kit (for pitched ceilings) | T-Hook for ceiling roses
Warranty
2 years standard warranty “in home” 3 years extended warranty on motor only (excluding labour)
