BALDOR DC Motors
Integral DC Tach Permanent Magnet SCR Drive Motor 1⁄4 thru 5 Hp
Conveyors
Metering Pumps
Description

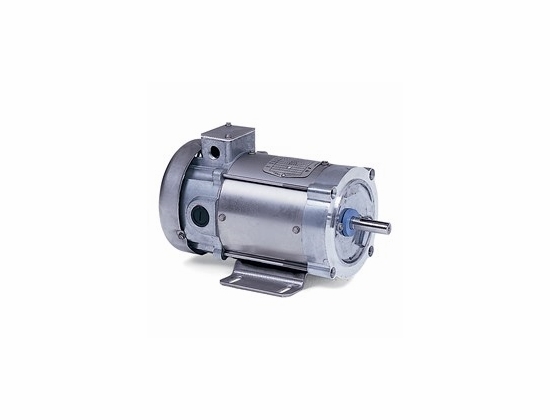

Integral DC Tach Permanent Magnet SCR Drive Motor – TENV + TEFC C-Face with Base
Available in round frame and unique laminated square frames, Baldor-Reliance® DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes, and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate
performance-limiting hot spots.
Applications include Conveyors + Metering Pumps
Precise speed regulation | 50 VDC per 1,000 RPM precision tachometer | Class F insulation | 20:1 constant torque speed range with NEMA | Type K control
1⁄4
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 2.5/1.25 | Enclosure TENV | Cat No. CDPT3310/CDPT3306
1⁄3 Hp
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 3.2/1.6 | Enclosure TENV | Cat No. CDPT3320/CDPT3316
1⁄2 Hp
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 4.8/2.5 | Enclosure TENV | Cat No. CDPT3330/CDPT3326
3⁄4 Hp
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 7.6/3.7 | Enclosure TEFC | Cat No. CDPT3440/CDPT3436
1 Hp
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 10/5 | Enclosure TEFC | Cat No. CDPT3445/CDPT3455
1 1⁄2 Hp
Base Speed 1750 | NEMA Frame 143TC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 7.7 | Enclosure TEFC | Cat No. CDPT3575
2 Hp
Base Speed 1750 | NEMA Frame 143TC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 9.6 | Enclosure TEFC | Cat No. CDPT3585
3 Hp
Base Speed 1750 | NEMA Frame 182ATC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 14 | Enclosure TEFC | Cat No. CDPT3603
5 Hp
Base Speed 1750 | NEMA Frame 1810ATC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 24.5 | Enclosure TEFC | Cat No. CDPT3605
