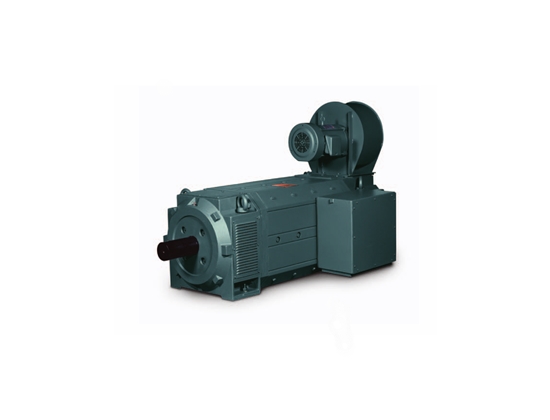

BALDOR DC Motors
SCR Drive Fractional Permanent Magnet Motor 1⁄4 thru 5Hp
General purpose including conveyors
Material handling equipment
Packaging machinery
Description
SCR drive fractional permanent magnet motor | 1⁄4 thru 5Hp | TENV + TEFC | C-Face with Base
These NEMA frame permanent magnet DC motors include permanent magnet designs through 5 HP designed for adjustable speed operation from SCR controls. Applications include conveyors, extruders, winders, printing presses and metering pumps. Most designs are constructed so a tachometer may be added for closed loop applications. Permanent magnet designs for 90 or 180 VDC have a 20:1 constant torque speed range.
Common Industries include – Plastics, Printing + Packaging
Common Applications – General purpose including conveyors, Material handling equipment and Packaging machinery
High quality ball bearing motors with precision machined die cast aluminum or steel housings, Dynamically balanced for smooth vibration-free operation.
NEMA C-Face with removable base | Tachometer adaptable | Class F insulation | Double sealed bearings | 20:1 constant torque speed range | UL and CSA recognized
Hp 1⁄4
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 2.5/1.25 | Enclosure TENV | Cat No. CDP3310/CDP3306
Hp 1⁄3
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 3.2/1.6 | Enclosure TENV | Cat No. CDP3320/CDP3316
Hp 1⁄2
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 4.8/2.5 | Enclosure TENV | Cat No. CDP3330/CDP3326
Hp 1⁄2
Base Speed 2500 | NEMA Frame 56C | Voltage D.C. Arm. 90 | Full Load Amperage Arm. 5 | Enclosure TENV | Cat No. CDP3335
Hp 3⁄4
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 7.6/3.7 | Enclosure TECF | Cat No. CDP3440/CDP3436
Hp 3⁄4
Base Speed 2500 | NEMA Frame 56C | Voltage D.C. Arm. 90 | Full Load Amperage Arm. 7.5 | Enclosure TECF | Cat No. CDP3443
Hp 1
Base Speed 1750 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 10/5 | Enclosure TECF | Cat No. CDP3445/CDP3455
Hp 1
Base Speed 2500 | NEMA Frame 56C | Voltage D.C. Arm. 90/180 | Full Load Amperage Arm. 9.7/4.85 | Enclosure TECF | Cat No. CDP3450/CDP3460
Hp 1 1⁄2
Base Speed 1750 | NEMA Frame 145TC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 7.7 | Enclosure TECF | Cat No. CDP3575
Hp 1 1⁄2
Base Speed 2500 | NEMA Frame 145TC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 7 | Enclosure TECF | Cat No. CDP3580
Hp 2
Base Speed 1750 | NEMA Frame 145TC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 9.6 | Enclosure TECF | Cat No. CDP3585
Hp 2
Base Speed 2500 | NEMA Frame 145TC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 10 | Enclosure TECF | Cat No. CDP3590
Hp 3
Base Speed 1750 | NEMA Frame 182TC/180C | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 14 | Enclosure TECF | Cat No. CDP3603/CDP3604
Hp 5
Base Speed 1750 | NEMA Frame 1810ATC | Voltage D.C. Arm. 180 | Full Load Amperage Arm. 21.6 | Enclosure TECF | Cat No. CDP3605
