Ceiling Fan DC
Aqua DC IP66
Maximum Airflow 14,286m³/hr
IP66 Rated
Indoor, Outdoor and Coastal Locations (without cover)
Description
Aqua IP66
The only IP66 rated ceiling fan in the world (patents pending and registered design). This fan is like no other fan on the market, it is completely dustproof, with full protection against dust particles and protection from high pressure water jets (projected by a nozzle 12.5mm) from any direction. Suitable for use indoor, outdoor and coastal locations (without cover)

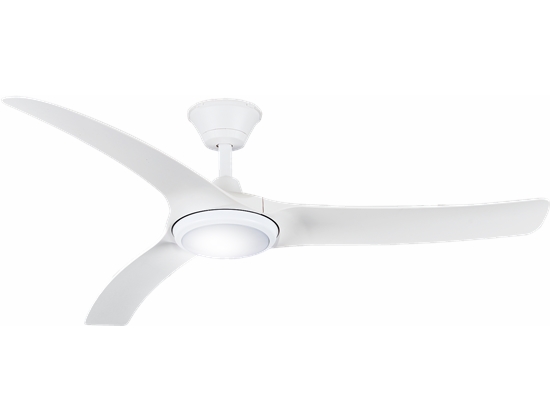

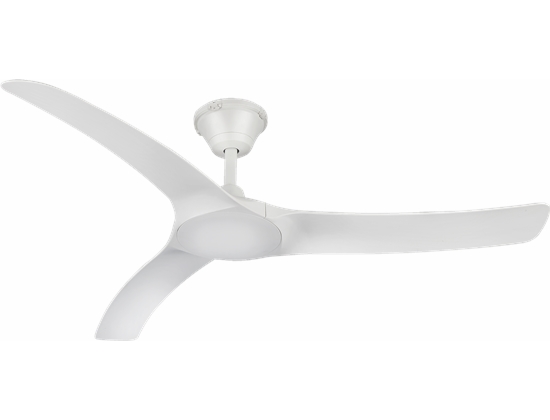

Available with Light or No Light
Light Model 1 x 18W CCT LED dimmable. Colour Temperature Range 3000K, 4000K + 6000K
Ceiling fans circulate air within a room and provide a cooling effect through the action of air moving over the skin.
In addition to making the room feel up to 6° cooler, they can significantly assist in savings up to 30% off your energy bills.
In winter ceiling fans redistribute warm air that gathers at the ceiling.
Running your fans in reverse, draws the air that naturally rises and gently re-circulating it throughout the room. Therefore balance the room’s temperature.
All ceiling fans should be at least 2.1 meters from floor to tip of the blades and at least 300mm from ceiling.
AC vs DC FANS
Alternating Current Motors (AC) use supplied power directly and regulate speeds by controlling frequency. AC Motors generally only have 3 speeds.
Direct Current motors (DC) convert supplied power directly. and regulate speeds by controlling electrical current. These Motors use up to 70% less energy than standard AC fans. Furthermore DC Ceiling Fans are more efficient, offering virtually silent operation.
Direct Current models usually have 5 or 6 speeds and are remote controlled.
Ceiling Fans purchased through Davis + Spence are covered by a Manufacturer’s Warranty
Always use a licenced professional for installation.
| 20333 |
•
IP66 certified
•
Indoor, outdoor and coastal locations
•
1320mm (52”) blade sweep
•
Airflow: 14,286 on High speed (Speed 6)
•
ABS Polymer & Aluminium
•
6 Speed remote controller & Reversible
•
18W Dimmable CCT LED 3000K, 4000K & 6000K (Light Model Only)
Installation Manual
Motor
158mm x 10mm DC motor Made with high grade copper windings and silicone steel stator. Bearings are sealed to ensure quiet operation and long life
Top Canopy & Downrod
Materials: ABS Polymer & Aluminium
Available Colours

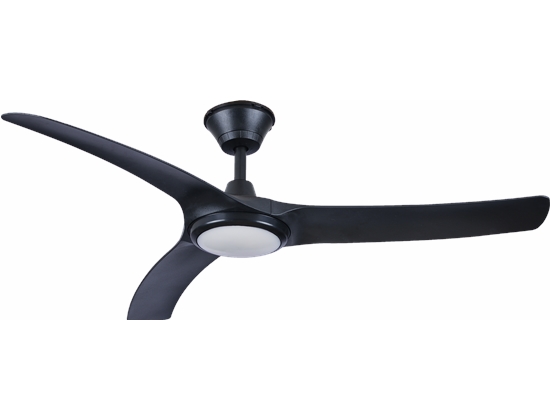

Matt White and Matt Black
Blades
Sizes: 1320mm (52”) Materials: ABS Polymer Blade Pitch: 13.5°
Available Blade Colours
Matt White and Matt Black
Extra Information
6 Speed remote controller | Reversible
Standard Canopy Cover
Suitable for flat ceiling
Rotational Diameter
1320mm (52”) blade sweep
Ceiling to top side of the blade
Approximately 270mm
Accessories (Supplied separately)
Extension Threaded Down Rod 26mm diameter T-Hook for ceiling roses
Warranty
2 years in-home warranty on all electric components (control modules, remote control system, lighting and accessory wall control) 3 years standard “in home” warranty 3 years extended warranty on motor only (excluding labour)
Airflow CMH
14,286 on High speed (Speed 6)
